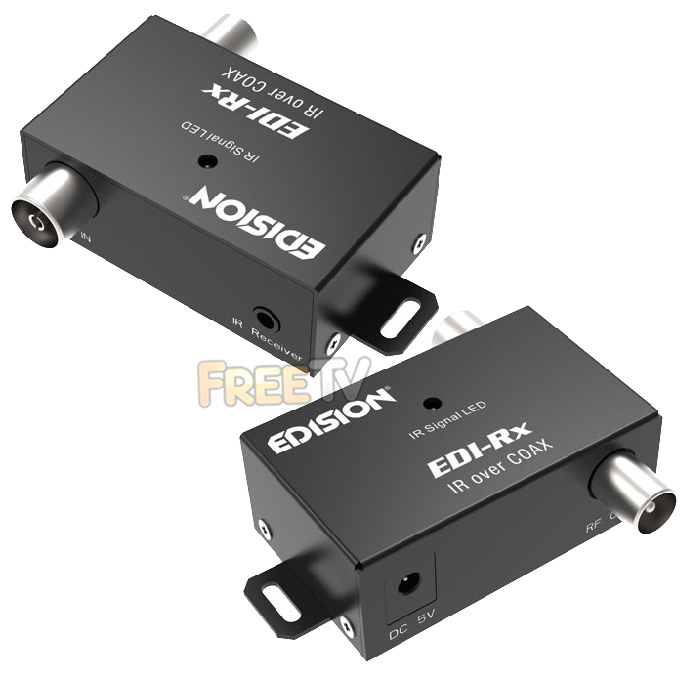

DESCRIPTION of IR Over Coax Extender
- Top Quality IR Over Coax Extender
- AKA Infrared Over Coaxial Cable Range Extender
- Contents
- IR Control System EDI-Rx
- Jack to IR Rx Cable
- USB to DC (5V) Cable
- Compatible With Edision XTEND HDMI modulator
- Connections: RF IN, RF OUT, IR OUT, 5Vdc
- Power Over DC to USB Cable
- Modulation Type: ASK
- Frequency Bandwidth: VHF III (174-230 MHZ) & UHF (470-862 MHZ)
- RF IN: 1x Female Coaxial IEC-type
- RF OUT: 1x Male Coaxial IEC-type
- IR Receiver OUT: Stereo Jack 3.5mm (Jack to IR EDI-Rx)
- DC OUT: 5V ~ 500mA (DC to USB Cable)
- IR Signal LED IR Status Indication
- Dimensions (WxHxD): 7.8 x 5.8 x 2.8cm
USES of IR Over Coax Extender
- The extension IR receiver over coax EDI-Rx is an IR receiver for use as an extra IR control TV point over coaxial cable
- It is designed for extra control point though coaxial cable for devices such as satellite TV receivers, Saorview / Freeview receivers etc..
