Professional RJ45 Crimping Tool

Z9E_76600HS_PHX
In stock
19.95 (ex VAT)
(24.54 Incl. VAT)
+

video guides available

Description of RJ45 Crimping Tool

  • Professional Crimping Tool
  • Suits RJ45 & RJ11 Connectors
  • Works With CAT5 & CAT6 Connectors
  • Dimensions (LxW): 20cm x 8cm
  • High Quality Construction
  • Design Gives Maximum Comfort During Extended Use
  • Manufacturer: Philex
  • CC 8203200000 0.3kg N

Uses of RJ45 Crimping Tool

  • Crimp, cut & strip tool for networking and telephone applications
  • Ideal for use when
    • Crimping RJ45 connectors onto CAT5 and CAT6 cable
    • Crimping RJ11s onto telephone cable
  • Suitable for DIYers but ideal for professional satellite installers and electricians

Advantages of RJ45 Crimping Tool

  • Best crimping tool on the market, a must for the professional
  • Suitable for RJ11s and RJ45s for both CAT5 & CAT6
  • Can be very cost efficient on large commercial jobs
  • Easy grip handles perfect for prolonged use

Disadvantages of RJ45 Crimping Tool

  • There are less expensive types of RJ45 & RJ11 crimping tools on the market

Below is documented the correct wiring format for a CAT5 Cable and detailed instruction for making a CAT5 Cable.



WIRING DIAGRAMS FOR A CAT5 CABLE

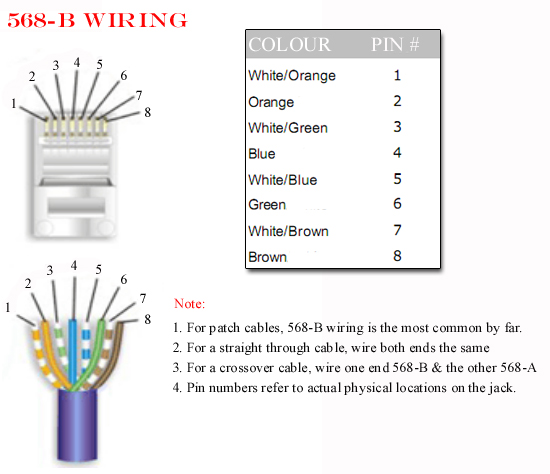

Cat5 568-B Type Wiring Diagram
Notes

The diagram above is called a CAT5 Type B wiring method which is the one that is almost exclusively used in industry.

TO MAKE A CAT5 CABLE

Equipment needed

  • Roll of CAT5 Cable
  • RJ45 CRIMPING Tool
  • RJ45 Connectors * 2

Steps

  1. Using a crimping tool remove the outer protective sleeve leaving around 25mm of cable exposed
  2. Next untwist each of the pairs of cables
  3. Line up the wires in accordance with the wiring diagram above
  4. Again using the crimping tool cut the cable leaving about 12-15mm of cable exposed.
  5. Push the cables into the RJ45 Plug
  6. Use the crimping tool to crimp the RJ45 Connector on the the cable
  7. Cut the CAT5 cable to the required lenght
  8. Repeat the process to put a connector on the far end

NOTES ON CAT5 WIRING

1. 568-A wring

There is an alternate wiring convention for CAT5 cables called 568-A. See diagram below:



Cat5 568-A Type Wiring Diagram

The most common use of this convention would be use a Type A & and a Type B connector to make a cross over cable.

2. Types of CAT5 Cable

  • The most commonly used cat5 cable is UTP (Unshielded Twisted Pair) cable. This is suitable for homes and offices
  • A more expensive option is to use FTP (Foil shielded Twisted Pair) cable
  • Which gives greater interference protection when running next to power cables
