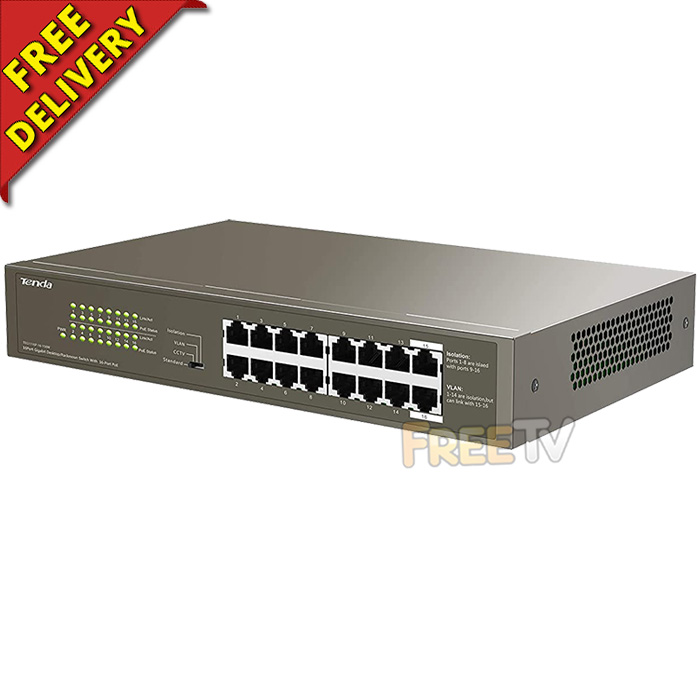

DESCRIPTION of 16 Port PoE Network Switch
- 16 Port PoE Switch
- Contents
- 16 Port PoE Switch
- 3 Pin Ireland / UK Plug
- Users Manual
- Port Types
- 16x 10/100/1000MB RJ-45 POE Ports
- 2x 1000MB Uplink Ports
- Supported Protocols
- IEEE 802.3i 10BASET, IEEE 802.3u 100BASETX, IEEE 802.3x Flow Control
- IEEE 802.1af DTE Power Via MDI, IEEE 802.3af
- Max. Power Per Individual Port
- 15.4W / 30W (IEEE 802.3af)
- 135W (Total)
- PoE Port Output Voltage: 48V
- Bandwidth: 32Gbps
- 19 Inch Rack Mountable
- Voltage Input: 220 - 240Vac
USES of 16 Port PoE Network Switch
- Specifically used to transmit power & data to the likes of access points, IP CCTV cameras, IP phones, etc...
ADVANTAGES of 16 Port PoE Network Switch
- Is compatible with 10/100/1000 (Gigabit) networks
- 16 Ports (16 PoE) will suffice most medium to large sized networks or IP camera setups
- It is an unmanaged network switch, which is handier
- This PoE switch has a priority function which will help protect the system when the system power is overloaded
- If all PoE PDs (Powered Devices) power consumption is maxed out, a priority will be arranged among the PoE ports
- Then the system will cut off the power of the lowest-priority port
- Priority (Port 1 = Port 2 = Port 3 > Port 4)
- This function will help to ensure the normal operation of the system
DISADVANTAGES of 16 Port PoE Network Switch
- 16 ports may be too many ports for your job but would allow for expansion at a later date
- PoE switches are more expensive than non-PoE network switches
TROUBLESHOOTING of PoE Switch
- If your camera or access point etc.. won't power up, please check that...
- Your device is rated at 48Vdc (Not 24Vdc)
- That you have flicked the VLAN switch on the PoE switch (where available) to default
Note; Now different brand to video but similar specifications
