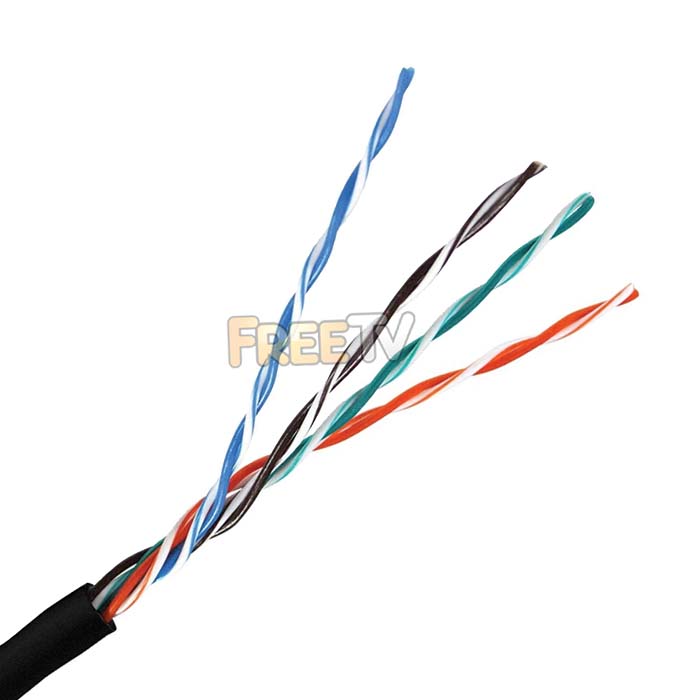

DESCRIPTION of Outdoor Cat5e Ethernet Cable
- CAT5e UTP100MHz Ethernet Cable
- UV Treated Ethernet Cable
- Option to Purchase Cable Pre-Terminated With RJ45 Connectors
- Important Note on Pre-Terminated Cable Option
- Cable is Tested & Verified Before Dispatch to Customers
- Pulling Pre-Terminated Cables Trough Walls Increases Chance of Damage to Integrity of Cable
- Always Best to Pull Unterminated Cable Through Walls
- Cable is Tested & Verified Before Dispatch to Customers
- Colour: Black
- Pairs: 4 Sets of Twisted Pair
- Dimensions
- Outer Cable Diameter: 5.35mm
- Outer Core Cable Diameter: 0.85mm (Inner 0.49mm)
- CCA: Copper Clad Aluminium
- PE Sheath Resistant to UV & Water
- Terminated: No
- Manufacturer: Philex
- Part Number: 70399CCAPE/100
- Rip Chord: Yes
- High Quality CAT5 Cable
- Length: 100m
- Note: We have tested this cable on camera runs of over 300m and it worked perfectly
- Outer Diameter: 6mm
- Packaging: Vacuum Sealed Roll
- Connector Type:
- RJ45 8 Pin Connector
- Need to use an RJ45 Crimping Tool
- CC 8544492000 2.1kg N
USES of Outdoor CAT5 Ethernet Cable
For a wide range of purposes when it is necessary to run CAT5 outdoors e.g.:
- Wireless broadband antenna being run to a router
- Connecting a second building to a LAN network
- Running cables to outdoor IP Cameras
ADVANTAGES of Outdoor CAT5 Ethernet Cable
- Comes with a protective PE Sheath which is resistant to water and UV rays
- Ideal for outdoor use
- Can be used over very long runs
- Ideal for almost all outdoor applications
Below is documented the correct wiring format for a CAT5 Cable and detailed instruction for making a CAT5 Cable.
WIRING DIAGRAMS FOR A CAT5 CABLE
Notes
The diagram above is called a CAT5 Type B wiring method which is the one that is almost exclusively used in industry.
TO MAKE A CAT5 CABLE
Equipment needed
- Roll of CAT5 Cable
- RJ45 CRIMPING Tool
- RJ45 Connectors * 2
Steps
- Using a crimping tool remove the outer protective sleeve leaving around 25mm of cable exposed
- Next untwist each of the pairs of cables
- Line up the wires in accordance with the wiring diagram above
- Again using the crimping tool cut the cable leaving about 12-15mm of cable exposed.
- Push the cables into the RJ45 Plug
- Use the crimping tool to crimp the RJ45 Connector on the the cable
- Cut the CAT5 cable to the required lenght
- Repeat the process to put a connector on the far end
NOTES ON CAT5 WIRING
1. 568-A wring
There is an alternate wiring convention for CAT5 cables called 568-A. See diagram below:
The most common use of this convention would be use a Type A & and a Type B connector to make a cross over cable.
2. Types of CAT5 Cable
- The most commonly used cat5 cable is UTP (Unshielded Twisted Pair) cable. This is suitable for homes and offices
- A more expensive option is to use FTP (Foil shielded Twisted Pair) cable
- Which gives greater interference protection when running next to power cables
