DIY Networking Tool Kit

5D_RJ2-KIT_ET
In stock
15.95 (ex VAT)
(19.62 Incl. VAT)
+
Bulk Discounts
Qty 10+
Price 15.63

video guides available

Description of Networking Tool Kit

  • DIY Networking Tool Kit
  • Contents
    • 1x Crimping & Cutter Tool With Wire Stripper
    • 2x Screwdrivers
    • 1x RJ45 Multi- Purpose Punch Down Tool
    • 1x R45 / RJ11 Network Cable Tester
    • 10x RJ45 CAT5, CAT5e, CAT6 & CAT7 Connectors
  • Also Includes Handy Carry Case
  • CC 8203200000 0.765kg N

Uses of Networking Tool Kit

  • Crimp, cut & strip tool kit for networking and telephone applications
  • Ideal for use when
    • Crimping RJ45 connectors onto CAT5 and CAT6 cable
    • Crimping RJ11s onto telephone cable
  • Ideal for DIYers

Advantages of Networking Tool Kit

  • Suitable for RJ11s and RJ45s for both CAT5 & CAT6
  • Low cost networking tool kit ideal for DIYers
  • Cheaper than buying all the competent parts individually

Disadvantages of Networking Tool Kit

  • It is a DIY networking tool kit and as such professional will probably choose to buy high end tools individually

Below is documented the correct wiring format for a CAT5 Cable and detailed instruction for making a CAT5 Cable.



WIRING DIAGRAMS FOR A CAT5 CABLE

Cat5 568-B Type Wiring Diagram
Notes

The diagram above is called a CAT5 Type B wiring method which is the one that is almost exclusively used in industry.

TO MAKE A CAT5 CABLE

Equipment needed

  • Roll of CAT5 Cable
  • RJ45 CRIMPING Tool
  • RJ45 Connectors * 2

Steps

  1. Using a crimping tool remove the outer protective sleeve leaving around 25mm of cable exposed
  2. Next untwist each of the pairs of cables
  3. Line up the wires in accordance with the wiring diagram above
  4. Again using the crimping tool cut the cable leaving about 12-15mm of cable exposed.
  5. Push the cables into the RJ45 Plug
  6. Use the crimping tool to crimp the RJ45 Connector on the the cable
  7. Cut the CAT5 cable to the required lenght
  8. Repeat the process to put a connector on the far end

NOTES ON CAT5 WIRING

1. 568-A wring

There is an alternate wiring convention for CAT5 cables called 568-A. See diagram below:

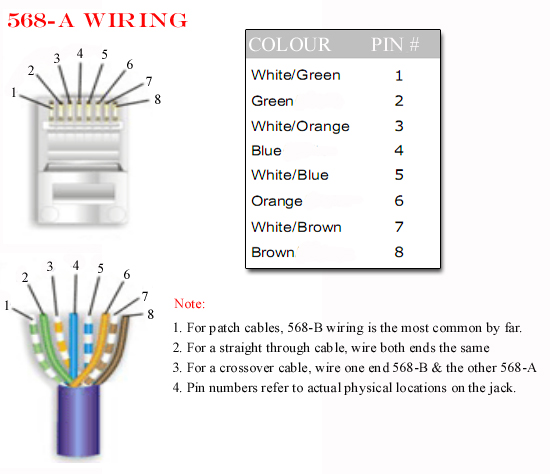

Cat5 568-A Type Wiring Diagram

The most common use of this convention would be use a Type A & and a Type B connector to make a cross over cable.

2. Types of CAT5 Cable

  • The most commonly used cat5 cable is UTP (Unshielded Twisted Pair) cable. This is suitable for homes and offices
  • A more expensive option is to use FTP (Foil shielded Twisted Pair) cable
  • Which gives greater interference protection when running next to power cables



This Company are a pleasure to deal with, good product & fast delivery. Thanks
Nice kit for a DIY project. Well put together
Great kit, easy to use and has everything you need to start making your own cables. Value for money and super fast delivery.
Can’t vouch for Free TV and their products enough. Never a delay and always prompt. Excellent packaging and never worried about the quality of their product.

Thanks lads

Brian in Cork
Super set for this money.
Great kit. Punch down worked great. Came with everything I needed to strip back the cables and crimp them. Very good value for money
Good product exactly what I wanted. A pleasure to deal with this company. Service was very efficient.
