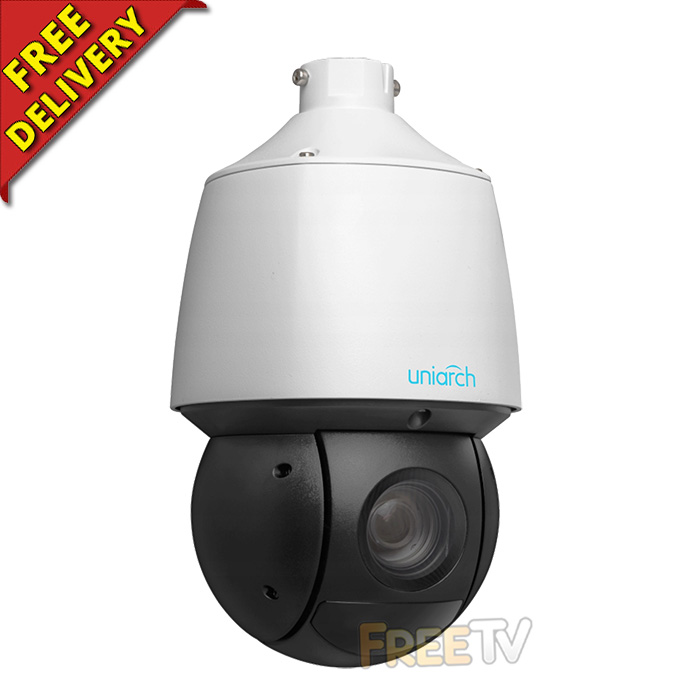

UniArch™ IP PTZ Camera (3MP, 20x Zoom, 5-100mm Varifocal Lens, 100m IR)

DESCRIPTION of IP PTZ Camera

• Top Quality IP PTZ Camera
• AKA Network Camera
• PTZ Camera (Pan / Tilt / Zoom)
• Resolution
  • Main Stream: 3MP (2304 x 1296p) @ Max 30fps
  • Sub Stream: 720P (1280 x 720p) @ Max 30fps
  • Third Stream: D1 (720 x 576p) @ Max 30fps
• Design: Speed Dome Camera
• Manufacturer: UniArch
• Model: IPC-P413-X20K
• IR Range: 100m Night Vision
• Motorised Zoom Lens: 5 - 100mm Automatic Focusing (AKA Varifocal (V/F))
• Field of View: Approx. 4° - 52° (Horizontal)
• 1/2.8” 3 Megapixel, Progressive Scan, CMOS
• Compression: H.265 & H.264
• Ultra Low Light Camera
• Minimum Illumination
  • Colour: 0.003Lux (F1.7, AGC ON)
  • 0Lux With IR On
• Optical WDR (120dB), Day/Night (ICR)
• 2D/3D DNR, Digital Defog, BLC, HLC
• Compatibility: ONVIF (Profile S, Profile G, Profile T), API, SDK
• Supports Horizontal / Vertical Flip: 180°
• Privacy Mask: 24 Areas (Up to 4 Areas Per Scene)
• ROI (Region of Interest): Supported
• Behaviour Detection
  • Motion Detection, Tampering Alarm
  • Auto Tracking: Supported
• Multiple Network Monitoring
• Weatherproof: IP66
• Storage: MicroSD Card Slot (Max. 256GB)
• Power: 12Vdc, PoE+ (802.3at)
• Power Supply Not Included
• For Remote Viewing, Download Free App Called UniArch

USES of IP PTZ Camera

• Use with a network video recorder
• Use with a hybrid DVR which has IP camera capabilities
• Use without a recording unit as it has an integrated MicroSD card reader

ADVANTAGES of IP PTZ Camera

• Gives a great 3MP picture, 50% better than 1080p full HD
• It is simple and easy to mount on wall or ceiling

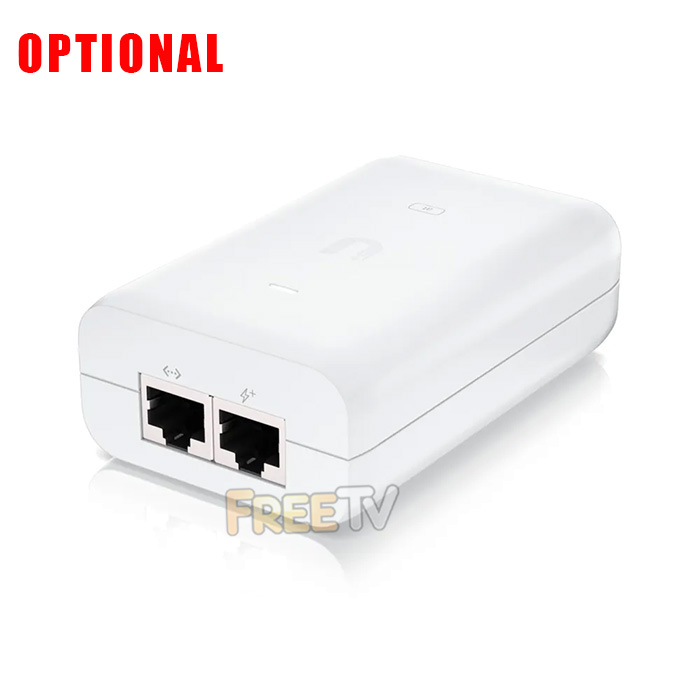

• It is possible to power the IP camera directly from a POE (Power over Ethernet) switch
• This can suit customers who are familiar with computer networks - allows easy access and deployment
• Can also set up to record to PC or NAS (Network Attached Storage) device
• Also works with Hikvision / Hiwatch / Dahua NVRs
• It has a MicroSD card slot so would be suitable for standalone applications without the need for an NVR
• It is a motorised pan / tilt / zoom camera so can be aimed & focused remotely
• It has night vision up to 100m

DISADVANTAGES of IP PTZ Camera

• IP cameras are a little more expensive than traditional analogue CCTV cameras
• Can't be added on to an existing DVR system that does not have IP camera compatibility (Needs an NVR or hybrid DVR system that supports IP)
