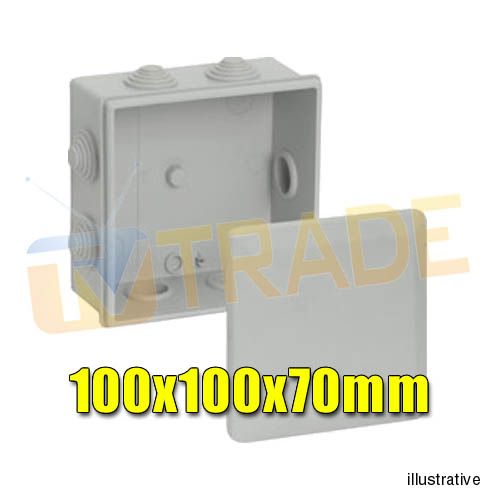

Description of Waterproof Electrical Junction Box
- Waterproof Electrical Junction Box
- Size: 100x100x70mm
- Access Points (Rubber Bungs with 27mm Diameter): 7
- Colour: Grey
- Waterproof Rating: IP55
- CE Approval: Yes
- Junction Box Material: Hard Plastic (Not Brittle)
- Lid Design: Held in Place with 4 Philips Head Screws
- Smooth Finish on Lid
- Note: Works with M25 Glands (PG21 Cable Glands)
- CC 85389099 0.15kg N
IP55 - Standard
- The rating achieved by a junction box is defined by numbers following 'IP'
- First number defines 'Solid Particle Protection'
- Second number defines 'Liquid Ingress Protection'
- IP55 means the junction box is protected against
- Dust (but entirely dust tight) and offers complete protection against contact
- Water jets (up to 6.3mm) against enclosure from any direction shall have no harmful effects
Uses of Waterproof Electrical Junction Box
- To provide a waterproof enclosure for cable joins
- Typical application would be with CCTV cameras to protect cable joins, connectors etc..
Advantages of Waterproof Electrical Junction Box
- Compact, dust and waterproof unit
- Low cost, yet good quality with a flexible (non-brittle) lid
- Very popular size junction box
- Can be used with rubber bungs provided or with M25 glands (PG21 Glands)
- Can be used indoors or outdoors
- Lid is securely held on with screws
Disadvantages of Waterproof Electrical Junction Box
- Not large enough to house a power unit
- There are other boxes with higher IP ratings in terms of dust and liquid protection
