Description of Ethernet Cable Core Wire Separator
- Ethernet Cable Core Wire Separator
- AKA Core Wire Straightener / Untwister
- Suitable For UTP & FTP Ethernet Cables
- Compatibility: CAT5, CAT5e & CAT6 Network Cabling
- Untwist, Separate & Straighten Ethernet Cable Core Wires
- Material: Plastic & Brass
- Colour: Blue
Uses of Ethernet Cable Core Wire Separator
- Use to untwist, separate & straighten the cores from ethernet cable
- Particularly useful when crimping RJ45 connectors of working with wall plate keystones
Advantages of Ethernet Cable Core Separator
- Easy to use tool
- Low cost networking tool ideal for DIYers & professional alike
- Gives a tidy finish to untwisting twisted pairs in ethernet cables making working with RJ45s & keystones easier
Disadvantages of Ethernet Cable Core Wire Separator
- You can do this by hand but it generally will not be as neat or quick
Coming soon...
Below is documented the correct wiring format for a CAT5 Cable and detailed instruction for making a CAT5 Cable.
WIRING DIAGRAMS FOR A CAT5 CABLE
Notes
The diagram above is called a CAT5 Type B wiring method which is the one that is almost exclusively used in industry.
TO MAKE A CAT5 CABLE
Equipment needed
- Roll of CAT5 Cable
- RJ45 CRIMPING Tool
- RJ45 Connectors * 2
Steps
- Using a crimping tool remove the outer protective sleeve leaving around 25mm of cable exposed
- Next untwist each of the pairs of cables
- Line up the wires in accordance with the wiring diagram above
- Again using the crimping tool cut the cable leaving about 12-15mm of cable exposed.
- Push the cables into the RJ45 Plug
- Use the crimping tool to crimp the RJ45 Connector on the the cable
- Cut the CAT5 cable to the required lenght
- Repeat the process to put a connector on the far end
NOTES ON CAT5 WIRING
1. 568-A wring

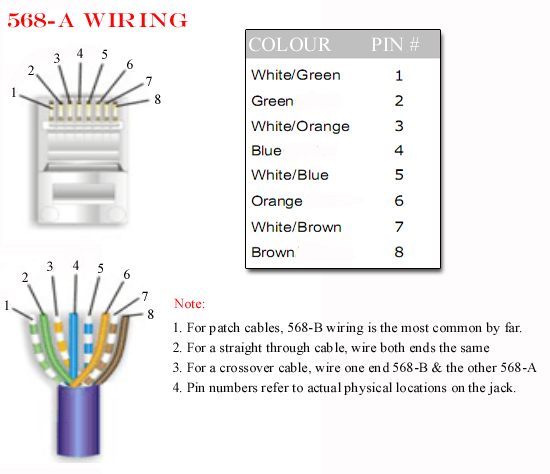

There is an alternate wiring convention for CAT5 cables called 568-A. See diagram below:
The most common use of this convention would be use a Type A & and a Type B connector to make a cross over cable.
2. Types of CAT5 Cable
- The most commonly used cat5 cable is UTP (Unshielded Twisted Pair) cable. This is suitable for homes and offices
- A more expensive option is to use FTP (Foil shielded Twisted Pair) cable
- Which gives greater interference protection when running next to power cables
