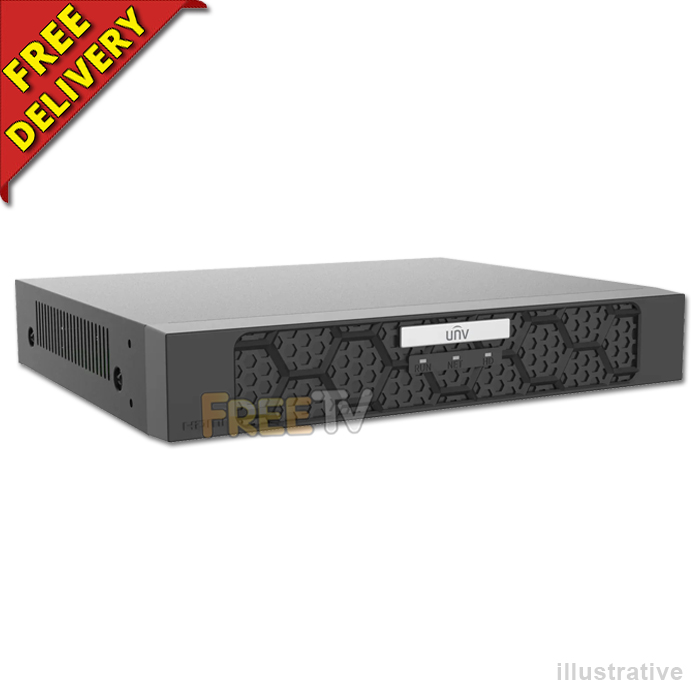

DESCRIPTION of 4 Channel NVR
- Professional Quality 4 Channel NVR
- NVR = Network Video Recorder
- AKA 4 Camera NVR, 4 Way NVR
- Manufacturer: Uniview/UniArch
- Model: NVR301-04LX-P4
- Resolution: Up to 4K (3840 x 2160p) = 8 Megapixels
- Compatible With IP Cameras of Following Resolutions
- 8MP / 5MP / 4MP / 3MP / 1080P (2MP) / 720P (1MP) / 960H
- Video Compression: Ultra 265 / H.265 / H.264
- HDMI & VGA Outputs
- Audio Output: 1-ch, RCA
- Storage: 1x SATA Hard Drive (Up to 6TB)
- Integrated PoE: Yes
- Smart (AI) Functions
- Intrusion Detection, Cross Line Detection, Enter Area, Leave Area
- Defocus Detection, Scene Change Detection, Auto Tracking
- 1x USB 2.0 Port, 1x USB 3.0 Port
- 4x RJ45 10/100Mbps Ethernet Ports
- Dimensions: 255 x 215 x 42mm
- PoE Standard: IEEE 802.3at, IEEE 802.3af
- CE Certified
- For Remote Viewing Download Free App Called EZView
How Much Can I Record
- Based on the following scenario
- 8TB Drive Installed
- Resolution: 3840 x 2160p (8 Megapixels)
- Number of IP CCTV Cameras: 4
- Recording Frame Rate: 30fps (Frames Per Second)
- Recording Mode: 24/7
- This will offer 20 days of stored recordings
- Notes on recording rates
- Selecting a lower resolution, reducing number of cameras or frame rate will greatly increase capacity
- NVR can support up to 1x 6TB hard drive
USES of 4 Channel NVR
- Suitable for smaller sized commercial and domestic applications
- Idea for situations where 4K quality playback is desired
ADVANTAGES of 4 Channel NVR
- This 4 channel network video recorder is compatible with the IP cameras we sell
- Known in the industry as an NVR
- It supports IP cameras up to 8 megapixels
- The picture quality is incredible, supporting up to 4K resolution
- Uniview is one of the market leaders for professional NVRs due to range, specification and price
- It comes with a P2P App - it is extremely easy to setup (No need to have a static IP or setup port forwarding)
- Uniview provide a range of NVRs (4, 8 & 16 channel), all of which use identical menus, setup and apps
- It supports networking, mobile phone & PC viewing
- Supports IP PTZ cameras
- Supports motion detection
- It includes integrated artificial intelligence & smart detection
- It has a HDMI output as well as VGA
- Can utilise existing ethernet cables in your setup, no need to run additional RG59 cables
DISADVANTAGES of 4 Channel NVR
- NVRs are brilliant but come at a slightly (about 10-15%) higher price than single equivalent technology DVRs
- More expensive than 2 & 4 megapixel NVRs
- Although NVRs & IP cameras have massively improved their user-friendliness over the past few years and now they are relatively simple to set up, some networking knowledge may be required in the case of troubleshooting
