Save 37%
Out of box. Demo model. Perfect working condition. 1 year warranty
DESCRIPTION of 8 Channel DVR

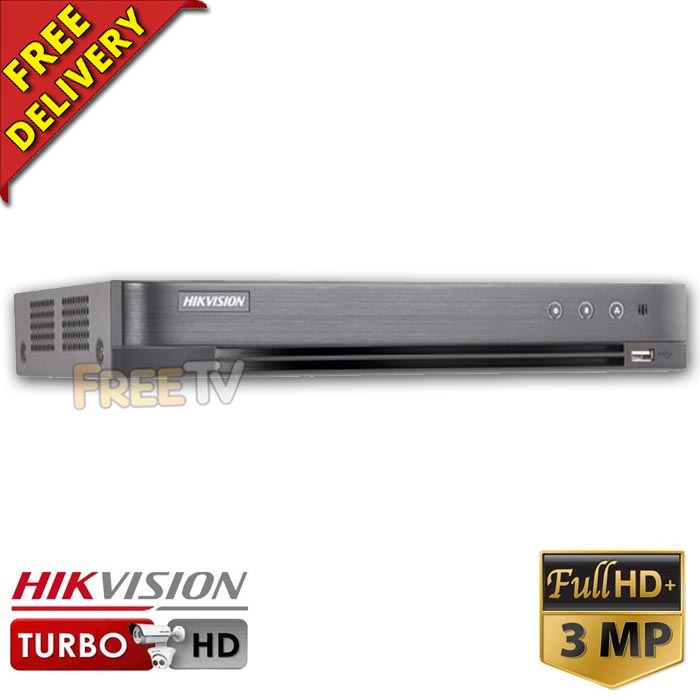

- Model: Hikvision iDS-7208HQHI-K1/4S Turbo 3.0 HD DVR
- 8 Channel 3 Megapixel Hybrid DVR Recorder
- Supports CCTV Cameras 4MP & Lower
- All Technologies Supported
- Supports
- HD-TVI Cameras
- AHD Cameras
- HD-CVI Cameras
- IP Cameras
- Analogue / 960H Cameras (Backwards Compatible)
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Analog & HD-TVI Video Input: 8 Channel, BNC interface (1.0Vp-p, 75 Ω) Connection
- Support HDTVI input: 4MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz
- Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
- Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz
- Support CVBS input
- Audio Input: 1 Channel
- CVBS Output: 1 Channel, BNC(1.0Vp-p,75Ω)
- Resolution: PAL:704x576 / NTSC:704x480
- HDMI/VGA Output
- 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
- Recording Resolution
- When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF
- When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
- Frame Rates
- Main stream
- When 1080p Lite mode not enabled
- For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps
- For 1080p stream access: 1080p / 720p@15fps; VGA/WD1 / 4CIF / CIF@25fps (P)/30fps (N)
- For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P)/30fps (N)
- When 1080p Lite mode enabled
- 3 MP@15fps
- 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)
- Sub-stream:
- WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
- Main stream
- Video Bit Rate: 32Kbps - 6Mbps
- Stream Type: Video / Video & Audio
- Playback Resolution: 3MP / 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
- Synchronous Playback: 8 Channel
- Network Protocols
- TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Hard Drive Not Included by Default
- Option to Purchase Surveillance Grade Hard Drive Above
- 1x SATA interface w/ 6TB Max Supported
- Operating Voltage: 12Vdc
- 1x 10/100Mbps Ethernet Port, 1x RS485, 2x USB 2.0
- Chassis: Standalone / 1U Chassis
- Dimensions (WxDxH): 315x242x45mm
How Much Can I Record
- Based on the following scenario
- 1TB Drive Installed
- Resolution: 2048x1536p (3 Megapixels)
- Number of HD CCTV Cameras: 4
- Recording Frame Rate: 15fps (Frames Per Second)
- Recording Mode: 24/7
- This will offer 6 days of stored recordings
- Notes on recording rates
- Selecting a lower resolution, reducing number of cameras or frame rate will greatly increase capacity
- DVR can support up to 6TB hard drive
USES of 8 Channel DVR
- Suitable for both small commercial and domestic applications
- Idea for situations where full HD quality playback is desired
- Ideal for remote viewing and remote control of PTZ Camera
- Can be used where there is a mix of existing cameras already
ADVANTAGES of 8 Channel DVR
- This HD-TVI DVR is compatible with most of the CCTV cameras we sell
- Known in the industry as a 'Hybrid DVR'
- It supports HD-TVI, Analogue, 960H & IP CCTV Cameras
- The picture quality is incredible, supporting up to 3MP
- Hikivision is the market leader for professional DVRs due to range, specification and price
- It comes with a P2P App - it is extremely easy to setup (No need to have a static IP or setup port forwarding)
- Hikvision provide a range of HD-TVI hybrid DVRs (4, 8 & 16 channel), all of which use identical menus, setup and Apps
- It supports networking, mobile phone & PC viewing
- Supports PTZ cameras
- Supports motion detection
- It can record in in resolutions in excess of high definition
- It has a HDMI output aswell as VGA
DISADVANTAGES of 8 Channel DVR
- HD-TVI / Analogue / 960H/ IP CCTV hybrid DVRs are very flexible but come at a slightly (about 10%) higher price than single equivalent technology DVRs
- More expensive than 1 megapixel hybrid DVRs
Hikvision Turbo 3.0 HD-TVI Hybrid DVR (3MP, TVI, IP, AHD, 960H, Analogue) - Overview
Coming soon...
Initial Setup For HiWatch / Hikvision DVRs & NVRs
HiWatch / HikVision DVRs & NVRs - How to Install a Hard Drive
HiWatch / HikVision DVRs & NVRs - How to Format a Hard Drive
HiWatch / HikVision DVRs & NVRs - Recording Functionality
HiWatch / HikVision DVRs & NVRs - Playback Your Recordings
HiWatch / HikVision DVRs & NVRs - How to Extract Recordings to USB Drive
HiWatch / HikVision DVRs & NVRs - Stop the Beeping
HiWatch / HikVision DVRs & NVRs - Performing a Factory Reset
HiWatch / HikVision DVRs & NVRs - Resetting Password Using SADP Tool
The S/N or QR code can be found in 2 locations
- The bottom of the DVR / NVR
- In the main menu -> configuration -> network -> platform access, then select enable
