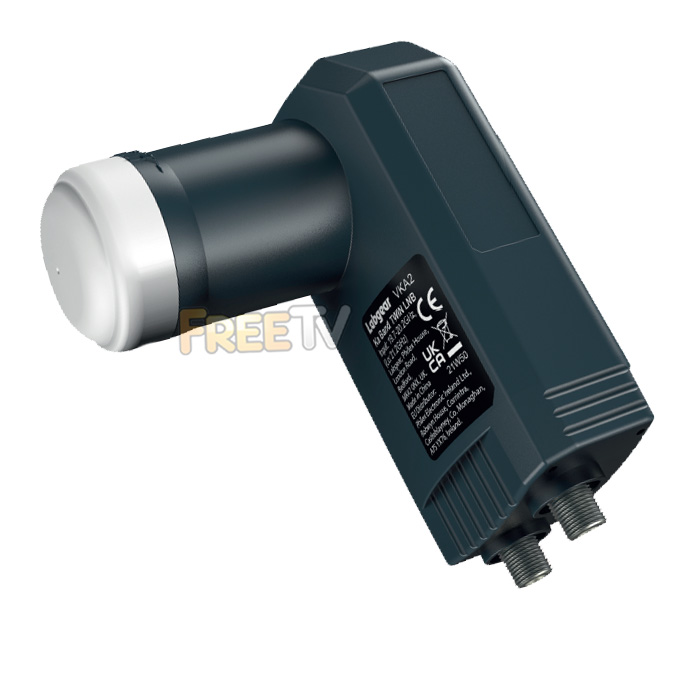

Saorsat KA-Band LNB

CODE: 12H_VKA2_PHX

2 reviews Write a review

Availability: In stock

RRP: €42.53

€17.31 (ex VAT)

(€21.29 Incl. VAT) You save: €25.22 (59%)

Add Quantity:

− +

Description
Video Guides
Product Video
Coverage
Channels
Reviews
Downloads

DESCRIPTION of Saorsat KA-Band LNB

Saorsat KA-Band LNB
Manufacturer: Labgear
Input frequency range: 19.7GHz ~ 20.2GHz
Output frequency range: 1500MHz ~ 1000MHz (spectrum inversion)
Low band LO frequency: 21.20GHz
LO temperature drift: ±3.0MHz Max.
LO initial accuracy: ±1.0 MHz Max.
Polarization: Dual circular for Ka band (RHCP/LHCP)
LO phase noise @ 10kHz: -85dBc / Hz max.
LO phase noise @ 100kHz: -100dBc / Hz max.
Conversion gain: 50dB ~ 65dB
Gain ripple (over 26MHz bandwidth): ±0.75dB
Gain variation (over full band): ±5dB max.
Image rejection: 40dB min.
1dB compression point (@ output): 0.0dBm min.
Cross polarization isolation: 22dB tpy
Polarization selection - LHCP: 13V
Polarization selection - RHCP: 18V
Output VSWR: 2.0 : 1
In band spurious level: -60 dBm max.
Current consumption: 170 mA max. @ 11 V ~ 20 V
Operating temperature: -30°C to +60°C
Output impedance: 75Ω
Fits all universal satellite dishes with a 40mm LNB holder

USES of Saorsat KA-Band LNB

Used in conjunction with an 80cm satellite dish to pickup Eutelsat @ 9 degrees east
With this you can receive the new Saorsat system, which offers Irish digital channels for free on satellite

ADVANTAGES of Saorsat KA-Band LNB

Allows you receive the Irish channels for free on satellite
No need for a TV aerial or subscription
Saorsat offers near 100% coverage while Saorview can reach no more than 95% of homes
No need for multi feed LNBs with Saorsat (Can split the Saorsat signal in attic)

DISADVANTAGES of Saorsat KA-Band LNB

More expensive than standard Sky / Freesat LNBs
The range of channels on Saorsat is not yet complete (Only RTE channels & TG4 so far)
Cannot receive Sky / Freesat with this KA-Sat LNB

How to Tune in Saorsat

How to Combine Saorsat & Freesat Channels

Note: Now a different manufacturer than video

Saorsat Coverage

Note: You won't need all the settings below.

System: DVB-S2
Frequency: 10758
Inversion: On
Symbol Rate: 12500
Polarisation: Vertical
FEC: 5/6
Modulation: QPSK
Roll-off: 0.20
Pilot: Auto

Saorsat Channels

Poduct arrived in good time and was in really good time.was what i was looking for

Arnold elder 14/07/2020, 11:05

Got a ka lnb for saorsat....its a new style compered to the old one from inverto...noise fig. 1.7db...fitted easily and set up side by side with 3 other ku band lnb's..wired into spare port no.4 on diseq switch on 90cm mesh dish..all working perfect..on a icecrypt 3200 sat reciever..tnx to freetv.ie for what is a prompt delivery etc..

Francis Shortt 17/05/2018, 10:53

Write a review

Saorsat (Only) Setup Diagram (saorsat-setup.pdf, 312 Kb) [Download]

Saorsat & Freesat on 1 Dish (saorsat-and-freesat.pdf, 417 Kb) [Download]

Saorsat & Freesat (2 Dishes) (combine-saorsat-and-freesat.pdf, 370 Kb) [Download]
