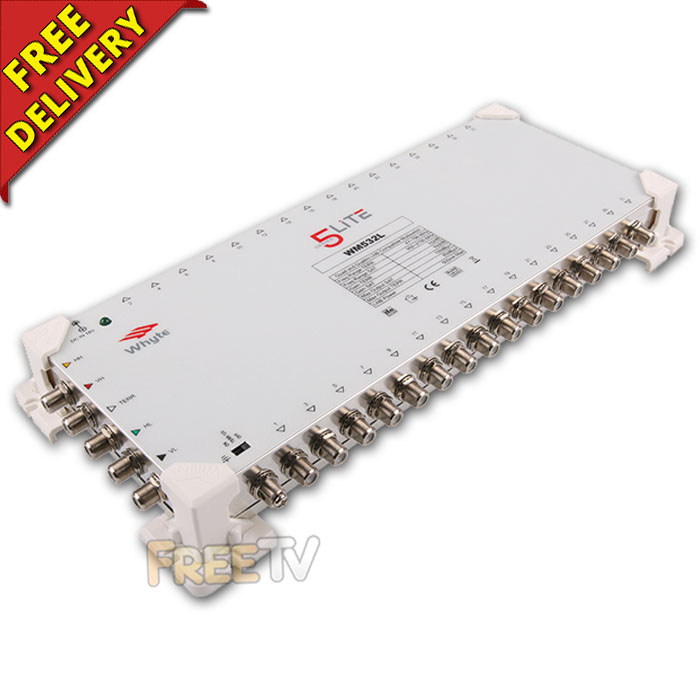

Whyte™ 5x32 Satellite & Terrestrial MultiSwitch

Y5_10005_WHY
In stock
319.00 (ex VAT)
(392.37 Incl. VAT)
+
Bulk Discounts
Qty 3+
Price 312.62

video guides available

DESCRIPTION of 5x32 Satellite & Terrestrial Multiswitch

  • Top Quality 5x32 Satellite & Terrestrial Multiswitch
  • Model: Whyte Series 5 Lite WM532L
  • Frequency: Satellite: 950-2150MHz, Terrestrial 47-790MHz
  • INPUTS (F-Type Connector): 4 SAT + 1 TERR
  • OUTPUTS (F-Type Connector): 32 Tap outputs
  • Gain: SAT: 0+-2dB | TERR:3+-2dB
  • TERR 12V DC Supply: 100mA
  • Isolation: Cross Polar: ≥25dB, Rejection : ≥20dB, Tap-Tap Sat: ≥25dB, Tap-Tap Terr: ≥23dB, Trunk – Trunk: ≥28dB
  • Output Level: SAT (IMA3 35db): 100dBμv, TERR (IMA360dB): 90dBμV
  • Switchable Voltage: 15±0.8V
  • Trunk Max Current: 2A
  • LNB Power Max: 15+-0.8V
  • Switching Commands: 13V-18V, 13V22k-18V22K
  • Current Consumption: 100mA max
  • Colour coded inputs
  • Power supply not included
  • Integrated LTE 4G filter
  • CC 8543709099 0.95kg Y

IMPORTANT ADVICE

  • This version of multiswitch can work with quads as well as quatro LNBs
  • Best results on terrestrial are achieved when using a grouped (e.g. Group B) rather than wide band UHF aerials
  • On terrestrial, it may be necessary to use a launch amplifier to boost signal (This is true for 16 & 32 output units)

USES of 5x32 Satellite & Terrestrial MultiSwitch

  • Used in conjunction with a Quad or Quatro LNB and a 80cm dish to distribute the satellite and sometimes Terrestrial TV signal to a number a number of TV points
  • Capable of giving good results on both Satellite and Terrestrial output
  • Used almost exclusively by professional satellite installers

Used extensively in

  • Small & Medium Hotels
  • Apartment blocks
  • Retirement villages

How 4 Input LNBs & Multiswitch Work

  • Used in conjunction with a quad or quatro LNB (normally mounted on an 80cm dish) who's 4 outputs are broken into
    • Vertical (High & Low)
    • Horizontal (High & Low)
  • Multiswitch Inputs:
    • Satellite: 4 from satellite - from either a quad or Quatro LNB
    • Terrestrial: Single feed covering full VHF / UHF spectrum
  • Multiswitch Outputs:
    • Outputs: 32 outputs to satellite receivers
  • At the TV Point:
    • Use a faceplate to split the signal into satellite and terrestrial

ADVANTAGES of 5x32 Satellite & Terrestrial MultiSwitch

  • This unit provides a very simple, effective, neat and cost efficient solution for supplying satellite & terrestrial TV to up to 32 TVs from a single unit
  • This unit with a single 80cm satellite dish can feed a large apartment block
  • Works well with both satellite and Terrestrial signals
  • Can be very cost efficient on medium sized commercial jobs
  • This multiswitch is part of Whytes top of the range multiswitches

DISADVANTAGES of 5x32 Satellite & Terrestrial MultiSwitch

  • This is a comparatively expensive unit and is not suitable for small jobs
  • Alignment and setup can be very complicated and frustrating - this unit is not for the DIYer
  • Need to plan properly and use high quality cable CT100 or CT165 if it is to work correctly through a large scheme
  • Will not support Sky Q, we have alternative product for this
