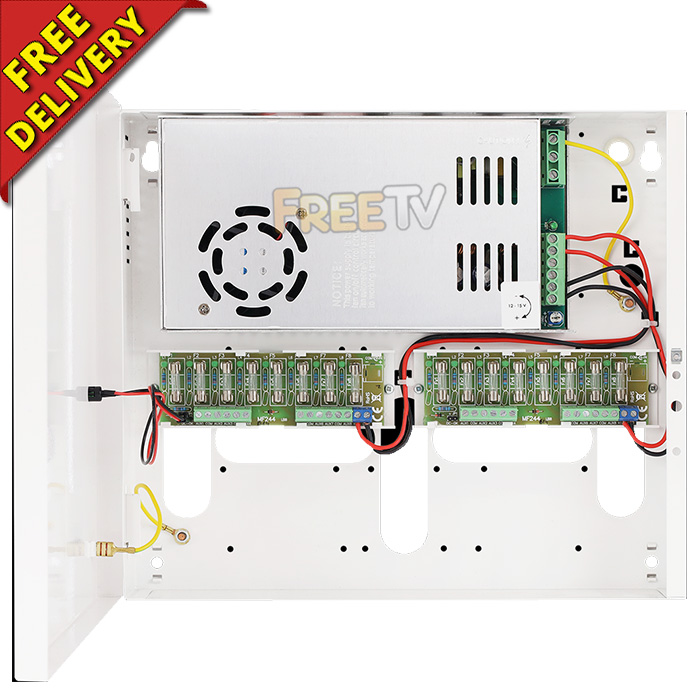

DESCRIPTION of 12V / 16000mA Power Supply (16 Outputs)
- 12 Volt Power Supply With 16 Amps Output
- Power Supply: 200 - 240Vac
- Power Supply Output: 16 x 1A (16A) / 12Vdc
- Voltage Adjustment Range: 12-15Vdc
- Efficiency: 86%
- Dimensions: W=290mm H=256mm D=52 ± 2mm
- Power Lead: No (Must Hard Wire to Internal Terminal Block)
- Metal Housing Painted White
- Air Vents on All 4 Sides
- Surface Mountable on Wall
- Protections
- SCP (Short Circuit Protection) OLP, OVP
- OVP: Over Voltage Protection
- OLP: Overload Protection
- CE Approved
USES of 12V / 16000mA Power Supply (16 Outputs)
- Ideal to supply power to CCTV cameras
- A single power unit can be used to power up to 16 cameras
- Suitable for commercial work
- Suitable for use in out-sheds such as farms or industrial units
ADVANTAGES of 12V / 16000mA Power Supply (16 Outputs)
- A single power unit can power up to 16 cameras
- It is a professional and reliable unit
- It comes at a low cost for professional unit
- LED power indicator allows you to know if the power unit is working without having to open the door
- LED light on each output allows you to quickly troubleshoot when there is an issue
- A fault or short on a single camera or cable will not cause the entire unit to stop working
- Few applications would need more than 16 cameras
DISADVANTAGES of 12V / 16000mA Power Supply (16 Outputs)
- It is more expensive than say a few of 5 Amp power supplies and 8 way power splitting cables
- There are higher specification power units on the market (they are far more expensive)
NOTE: Video shows older 12 output model. New unit has 16 outputs
