Description of 4x4 HDMI Matrix
- 4x4 HDMI Matrix
- Note: Is Really a 4x4+4 HDMI Matrix (Even Better! See Uses Below)

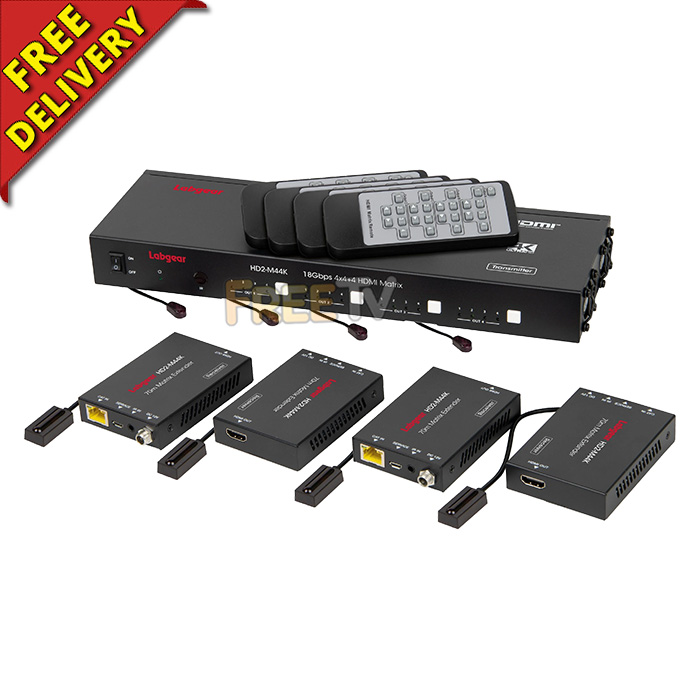

- What's Included
- 1x 4x4 HDMI Matrix Unit
- 4x Remote Controls
- 1x 12Vdc ~ 2.5A Power Supply
- 1x 1.5m RS-232 Serial Cable
- 1x 3-pin Phoenix Connector
- 4x 1.5m IR Emitter Cable
- 4x 1.5m IR Receiver Cable
- 10 x Mounts For Matrix & Receiver
- 1x User Manual
- Resolution: Max. 4K x 2K @ 60Hz Over 70m Run
- HDMI Version 2.0
- HDCP Version 2.2 (Sky Q Compatible)
- Max Bandwidth: 18Gbps
- Digital Audio Compatibility
- LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus & DTS-HD Master Audio
- One Way IR Matrix Function Allowing Control of Source Devices From Display Locations
- Control Using Front Panel Buttons, IR Remote, RS-232, LAN or Web GUI
- PoC, Allowing Receivers to be Powered Remotely by the Matrix Unit
- Advanced EDID Management & CEC Control
- HDR, HDR10, HDR10+, Dolby Vision, HLG High De finition Formats
- Note: Because of Bandwidths Involved, You Must Use CAT6 Network Cable Minimum
Uses of 4x4 HDMI Matrix
- Is used to send up to 4 independent HDMI outputs to up to 4 different TVs, hence 4x4 matrix
- Frequently used in pubs and clubs and sometimes in domestic setups
- For example to send
- Output from PS5, Blu-Ray Player, Sky Q / Sky HD / Virgin 4K Box & Media Player
- To 4 different TVs to be controlled independently from a central location
- Note: This compact matrix can connect four HDMI sources to up to eight displays

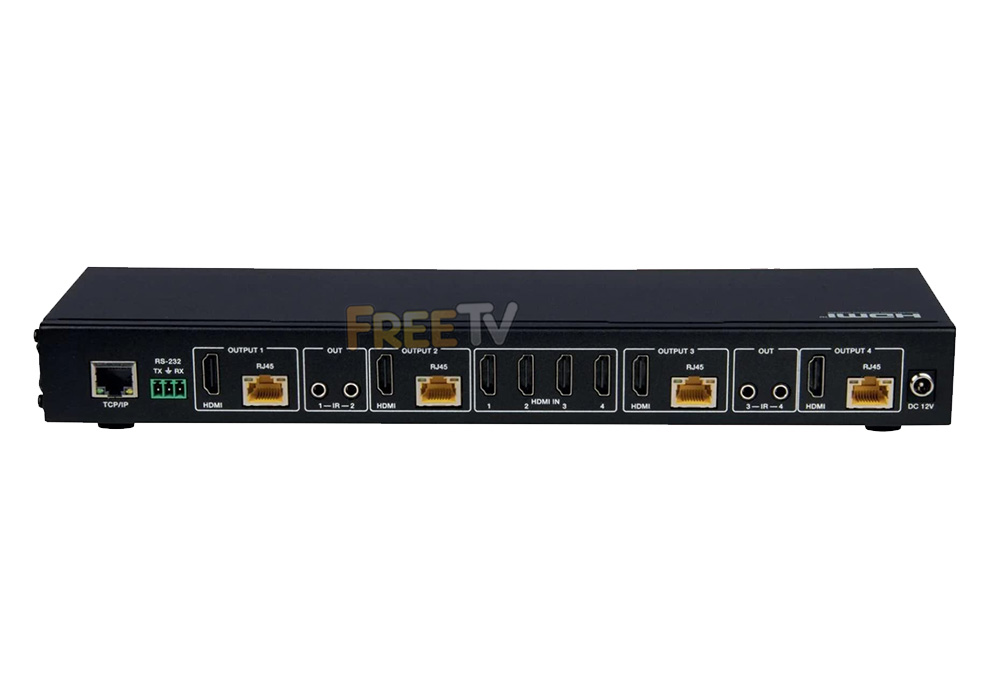

- It features four HDMI outputs and each HDMI output is mirrored to provide an RJ45 output which can carry a 4k2k@60Hz 4:4:4 HD signal up to 70m over individual CAT6 or CAT7 ethernet cables to the receivers
ADVANTAGES of 4x4 HDMI Matrix
- Saves having to have every device you want to watch in every single room
- Can be controlled from a central location
- Supports up to UHD (Ultra High Definition) 4K x 2K Resolution
- Is backwards compatible with 1080p full HD
- Gives total control of HDMI distribution compared to the likes of a HDMI splitter
- Is very low cost compared to comparable HDMI matrix sold elsewhere
- RS232 port for software updates and switching of inputs via PC
DISADVANTAGES of 4x4 HDMI Matrix
- HDMI splitters are less expensive option but do not have the control that a matrix does
